Savaime pakeliamas pusiau elektrinis krautuvas SDYG0511

  • Double linkae cylinder assembly
  • Both fork and frame can lift or be fixed

A versatile semi-electric stacker that lifts itself onto a lorry or van! It has a lifting capacity of up to 500kg up to 1300mm, travels with the load and a great alternative to having a tailgate.

„i-lift“ Nr.kg (svar.)15516011551602
Modelismm (coliais)SDYG0511SDYG0513
Nominali talpamm (coliais)500(1100)
Krovinio centrasmm (coliais)400(15.7)
Maksimalus šakės aukštismm (coliais)1100(44)1300(51.2)
Min .šakės aukštismm (coliais)90(3.5)
Šakės ilgismm (coliais)1150(45.3)
Bendras ilgismm (coliais)1600(63)
Bendras plotismm (coliais)790(31.1)
Bendras aukštismm (coliais)1400(55.1)1600(63)
Whole height (after tape file shelf)mm (coliais)2700(106.3)2900(114.2)
Posūkio spindulysmm (coliais)1100(44)1120(44.1)
Fork overall Widthmm (coliais)535(21)
Wheels basemm (coliais)860(33.9)
Priekinis krovininis ratasmm (coliais)NylonΦ70x60（2.6x2.4)
Rear steering wheelmm (coliais)NylonΦ100x50（4x2)
Balance wheelmm (coliais)NylonΦ40x26（1.6x1)
Training wheelmm (coliais)NylonΦ30x26（1.2x1)
Lifting speed(Without load)(mm / s)110
Lifting speed(With load)(mm / s)80
Lowering speed (without load)(mm / s)80
Lowering speed (with load)(mm / s)80
Motors liftingkw12V0.8
Battery capacityV / Ah12/33
Baterijos svoriskg (svar.)10(22)
Grynas svoriskg (svar.)197(433.4)219(481.8)
FEYG

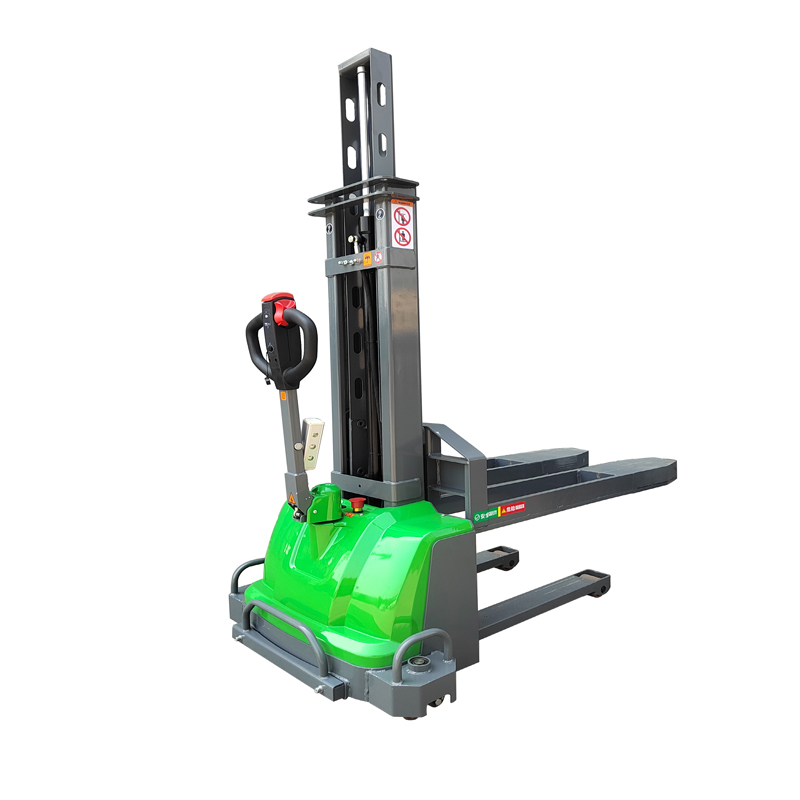

Full electric self-propelled Lifter FEYG

●Self-propelled lifter can transport with the goods in light to medium commercial vehicles ●Self -propelled lifter can lift itself into and out of the delivery vehicle. ●Self -propelled lifter quickly loads itself and the palletised cargo onto the van and...
