HRL1000 visiškai elektriniai besisukantys kėlimo stalai

This HRL series lift table with a carousel turnable (rotating lift table) is a lift table with a rotating platform designed from the ground up with the operator in mind, placing the load where the operator determines the most comfortable working height.It doesn't matter how short or tall the individual is, since the operator determines the most comfortable working height. The Roto-Max provides complete flexibility to do the most ergonomically safe job with maximum efficiency.

The stationary scissor lift table is an electric fixed turntable that can lift or lower the rated load. The product features an integral turntable top, hand control, control cord, and power cord. Whether the load is one pound or 4400 lbs, the positioner height remains the same until the individual requests a change. With a lowered height of only 11.8", an operator has easy access to the top layer of product. The raised height is ideally suited for most applications., it can be rotated by 360 degree.

 option:hand contral or foot control for  Electric lift table with manual rotating

The stationary lift table with a carousel turntable is extra wide at the pivot point. Its contoured logs combine great strength with lower collapsed height. All pivot points have hardened pins that operate in lubricated-for-life, virtually maintenance-free bushings.

Elektrinis sukamasis krautuvas turi modelius HRL1000, HRL2000, kurių talpa 1 tonas, 2 tonos.

▲ „i-Lift“ sunkiojo plieno karuselinis patefonas padeda pasukti padėklus, kad būtų lengviau įvynioti.

▲ Padidinkite darbuotojų saugą tiksliai pakeldami krovinius į patogų darbinį aukštį.

▲ Padėkite padidinti našumą ir kartu sumažinti sužeidimus dėl lenkimo ir pasiekimo.

Option Pasirinkimo galimybė - rankos ar kojos kontrastavimas.

▲ Šis modelis gali būti naudojamas virš grindų arba grindų duobėse.

 option:hand control with electric lift&rotate function

„i-lift“ Nr.13136051313606
ModelisHRL1000HRL2000
Talpa kg (svar.)1000(2200)2000(4400)
Miniaukštis mm (coliais)300(11.8)
Maksimalus aukštis mm (coliais)710(28)
Besisukantis žiedas, išor. mm (coliais)1110(44)
Pagrindo rėmo ilgis mm (coliais)930(36.6)
Pagrindo rėmo plotis mm (coliais)920(36.2)
Grynas svoris kg (svar.)208(457.6)217(477.4)

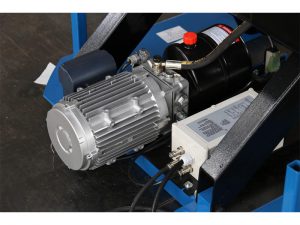

Maitinimo blokas380 V / 1,1 kW380 V / 2,2 kW
